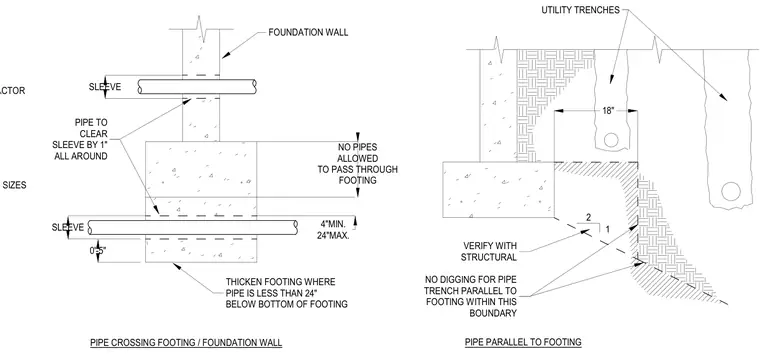

Utility pipes penetrating concrete foundation walls and footings must utilize a sleeve maintaining a 1-inch minimum clearance all around. Pipes crossing below footings require the footing to be thickened when located less than 24 inches below the bottom of the footing, with a minimum vertical separation of 4 inches and maximum of 24 inches. Parallel utility trenches must respect a specified slope boundary away from the footing and avoid excavation within restricted zones.
VERIFY WITH GENERAL CONTRACTOR SEE PLAN FOR SIZES PIPE CROSSING FOOTING / FOUNDATION WALL PIPE PARALLEL TO FOOTING THICKEN FOOTING WHERE PIPE IS LESS THAN 24" BELOW BOTTOM OF FOOTING FOUNDATION WALL PIPE TO CLEAR SLEEVE BY 1" ALL AROUND NO DIGGING FOR PIPE TRENCH PARALLEL TO FOOTING WITHIN THIS BOUNDARY VERIFY WITH STRUCTURAL UTILITY TRENCHES 1 2 0'-5" SLEEVE SLEEVE 4"MIN. 24"MAX. NO PIPES ALLOWED TO PASS THROUGH FOOTING 18"
