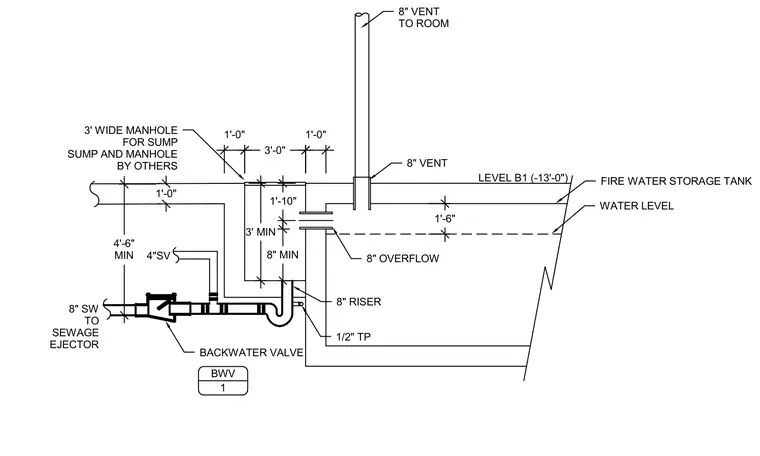

An eight-inch overflow pipe connects the fire water storage tank to an adjacent sump with a three-foot minimum depth and a three-foot-wide manhole. An eight-inch vent extends from the tank to the room, accompanied by a separate eight-inch riser and a half-inch test plug. The sump discharge connects to a backwater valve and routes via an eight-inch sanitary waste line to a sewage ejector. A four-inch sanitary vent ties into the drainage system upstream of the backwater valve, with all sump and manhole construction designated as by others.
1'-0" 1'-0" 1'-6" 3'-0" 1'-10" 8" MIN 4'-6" MIN 1'-0" 3' MIN FIRE WATER STORAGE TANK 8" OVERFLOW WATER LEVEL 8" VENT 3' WIDE MANHOLE FOR SUMP SUMP AND MANHOLE BY OTHERS 8" RISER 8" VENT TO ROOM BACKWATER VALVE 1/2" TP LEVEL B1 (-13'-0") 8" SW TO SEWAGE EJECTOR 4"SV BWV 1
