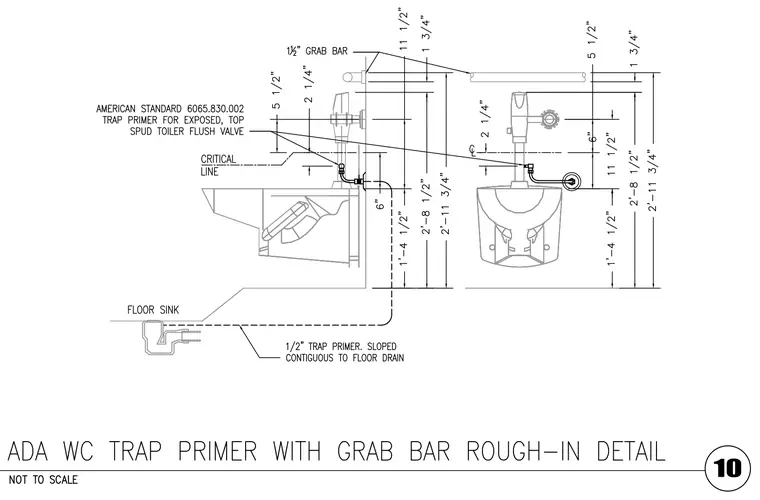

An ADA water closet rough-in detail indicates the vertical and horizontal dimensions for an American Standard 6065.830.002 trap primer for an exposed, top spud toilet flush valve. A one-and-one-half-inch grab bar is positioned above the fixture with precise offset dimensions from the critical line and finished floor. A one-half-inch trap primer line slopes contiguously down to a floor sink with associated drainage components. Plan and elevation views provide complete dimensional layout coordinates for plumbing rough-in coordination.
