Plumbing · P-73MSM

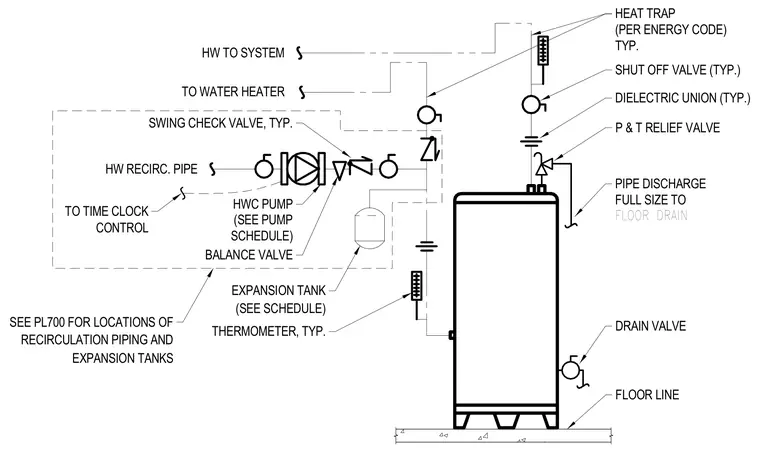

Electric Water Heater Piping with Recirculation Detail

Elements

About this detail

An electric water heater connects to the domestic hot water supply and recirculation system above the floor line. The assembly includes a pressure and temperature relief valve discharging to a floor drain, dielectric unions, shut-off valves, and thermometers. Hot water recirculation piping incorporates a circulation pump, swing check valve, balance valve, and time clock control. An expansion tank is installed on the recirculation loop, and energy-code-compliant heat traps are provided on the piping connections.
