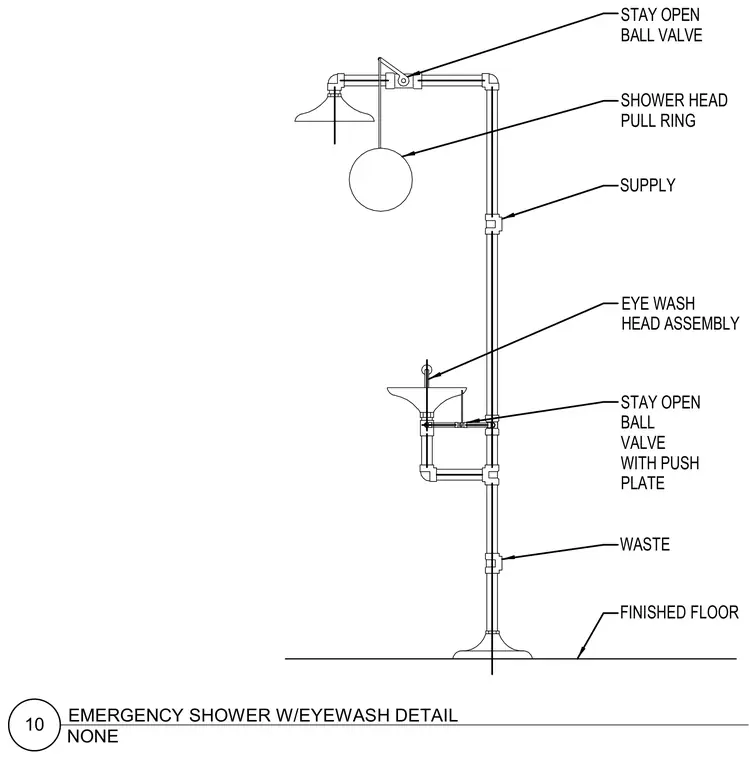

An emergency shower and eyewash assembly is mounted vertically above the finished floor, anchored with a flanged base plate. The unit incorporates a vertical supply pipe feeding a shower head activated by a stay-open ball valve with a pull ring. An eyewash head assembly is positioned midway up the vertical drop, operated by a separate stay-open ball valve with a push plate. Waste piping routes down the main vertical standard to drain into the floor.
SUPPLY FINISHED FLOOR WASTE SHOWER HEAD PULL RING EYE WASH HEAD ASSEMBLY STAY OPEN BALL VALVE WITH PUSH PLATE STAY OPEN BALL VALVE NONE 10 EMERGENCY SHOWER W/EYEWASH DETAIL
