Plumbing · P-72BSM

Triplex Water Softener

Materials

Elements

Floors / Slabs Drainage Connections / Plates

About this detail

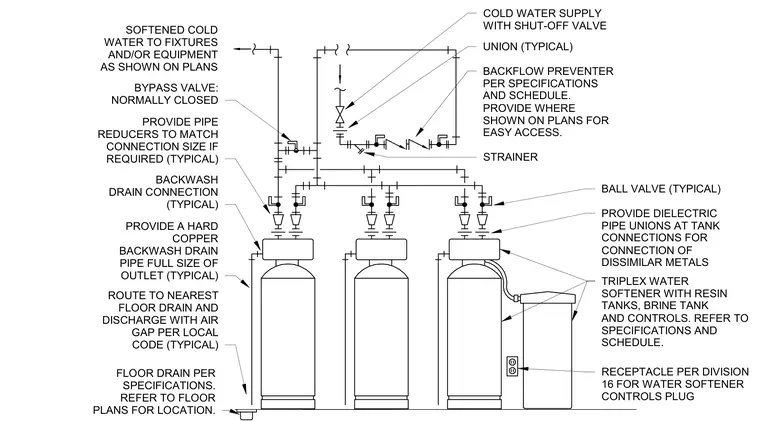

A triplex water softener system featuring three resin tanks, a brine tank, and controls is plumbed with a cold water supply line containing a shut-off valve, strainer, backflow preventer, and a normally closed bypass valve. Dielectric pipe unions are installed at tank connections to isolate dissimilar metals, alongside typical ball valves and pipe unions. Backwash drain connections route hard copper drain lines full size from the outlet to the nearest floor drain, maintaining an air gap per local code requirements. An electrical receptacle is provided nearby for the water softener controls plug.
