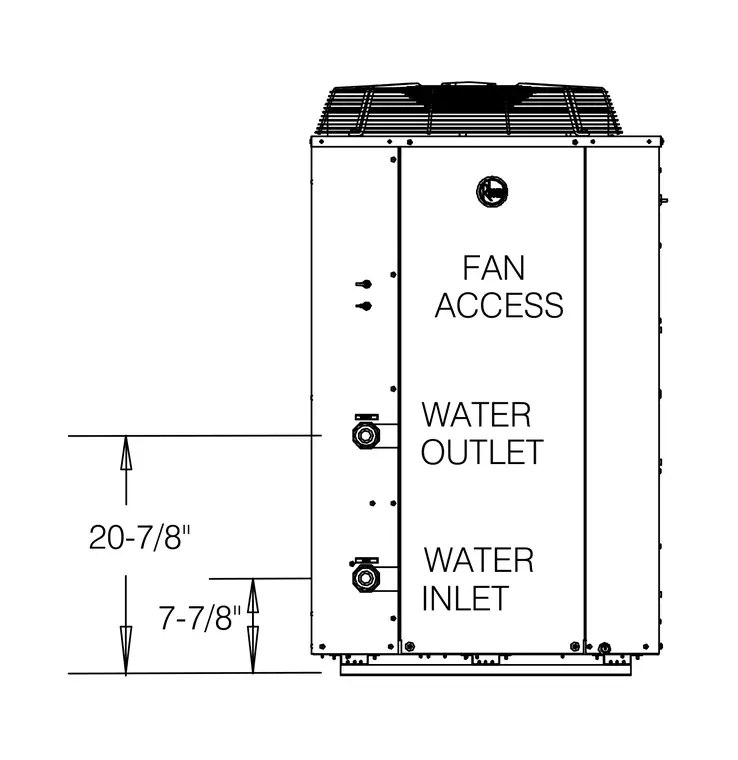

Mechanical equipment elevation shows the layout of the water inlet and water outlet connections relative to the base and fan access panel. The water outlet is located twenty and seven-eighths inches above the reference point, and the water inlet sits seven and seven-eighths inches above the reference point.
