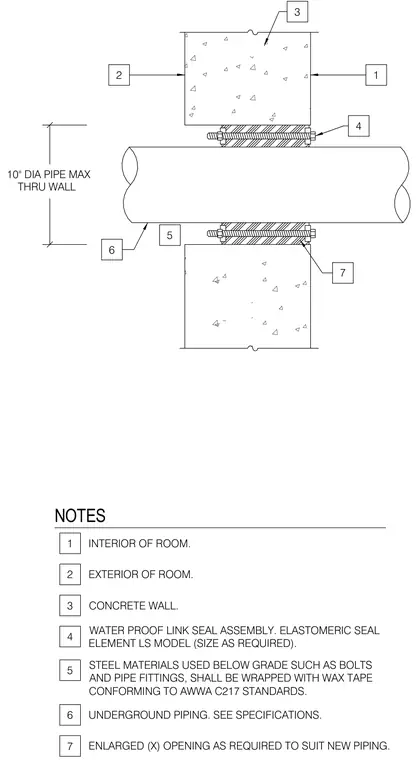

An underground pipe penetrates a concrete wall through an enlarged opening sealed with an elastomeric link-seal assembly. Steel materials and pipe fittings located below grade are wrapped with wax tape conforming to American Water Works Association C217 standards. The assembly accommodates pipes up to 10 inches in diameter maximum through the wall.
1 3 4 7 5 6 2 1 2 3 4 5 6 7 NOTES STEEL MATERIALS USED BELOW GRADE SUCH AS BOLTS AND PIPE FITTINGS, SHALL BE WRAPPED WITH WAX TAPE CONFORMING TO AWWA C217 STANDARDS. UNDERGROUND PIPING. SEE SPECIFICATIONS. WATER PROOF LINK SEAL ASSEMBLY. ELASTOMERIC SEAL ELEMENT LS MODEL (SIZE AS REQUIRED). CONCRETE WALL. EXTERIOR OF ROOM. INTERIOR OF ROOM. ENLARGED (X) OPENING AS REQUIRED TO SUIT NEW PIPING. 10" DIA PIPE MAX THRU WALL
