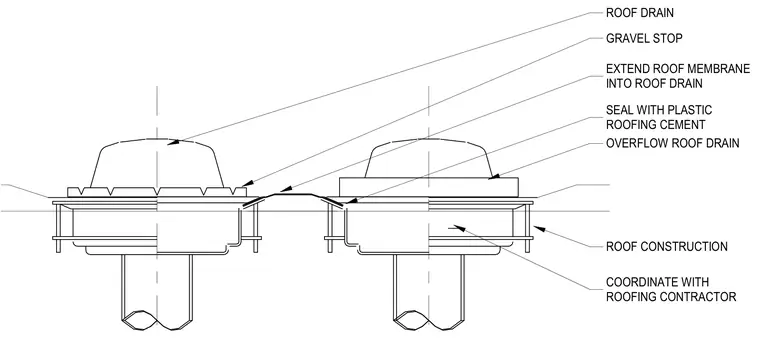

Roof drains and overflow roof drains are set into the roof construction with an integrated gravel stop. The roof membrane extends directly into the roof drain and is sealed with plastic roofing cement. Installation details must be coordinated with the roofing contractor.
ROOF DRAIN GRAVEL STOP EXTEND ROOF MEMBRANE INTO ROOF DRAIN SEAL WITH PLASTIC ROOFING CEMENT OVERFLOW ROOF DRAIN ROOF CONSTRUCTION COORDINATE WITH ROOFING CONTRACTOR
