Plumbing · P-6Y3QQ

Electric Water Heater Floor Mount

Elements

About this detail

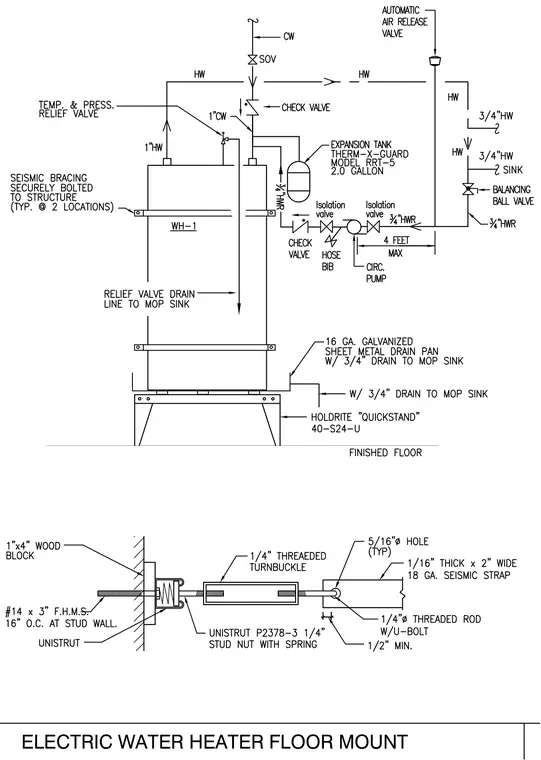

An electric water heater rests on a Holdrite Quickstand 40-S24-U over a 16-gauge galvanized sheet metal drain pan with a 3/4-inch drain to a mop sink. The tank connects to a 1-inch cold water supply line featuring a shut-off valve, check valve, and a 2.0-gallon thermal expansion tank model RRT-5. Hot water piping includes a temperature and pressure relief valve piped to a mop sink, an automatic air release valve, and a 3/4-inch hot water return line with a circulating pump, check valve, hose bib, and isolation valves. Seismic bracing consists of 18-gauge seismic straps secured to the structure with Unistrut, a 1/4-inch threaded turnbuckle, and threaded rods attached to a 1-inch by 4-inch wood block at the stud wall using #14 by 3-inch flat head machine screws spaced 16 inches on center.
