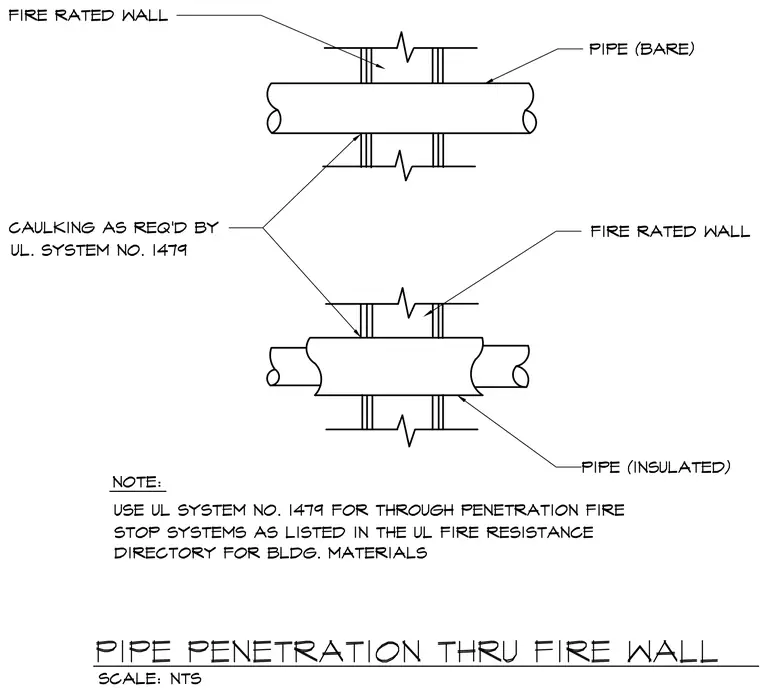

A bare pipe and an insulated pipe pass through a fire-rated wall assembly, sealed with caulking required by UL system number 1479. The installation follows the UL fire resistance directory for building materials regarding through penetration fire stop systems.
