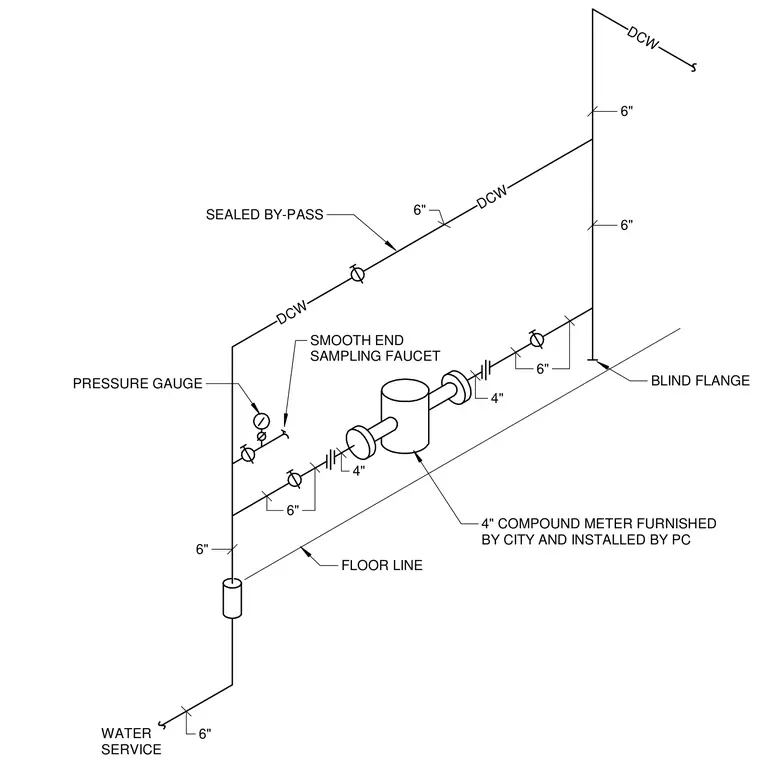

Domestic cold water piping rises from the water service through the floor line to a four-inch compound meter furnished by the city and installed by the plumbing contractor. The assembly incorporates six-inch and four-inch domestic cold water lines, a sealed bypass line, a pressure gauge, a smooth end sampling faucet, and a six-inch blind flange on the terminal end.
FLOOR LINE 6" BLIND FLANGE SMOOTH END SAMPLING FAUCET 4" 6" 6" DCW DCW DCW 6" 4" COMPOUND METER FURNISHED BY CITY AND INSTALLED BY PC 6" 6" 4" WATER SERVICE SEALED BY-PASS PRESSURE GAUGE 6"
