A twenty-four inch diameter drywell is constructed from six-inch grade rings with no mortar between the joints, terminating beneath a solid concrete cover set at least one foot below finished grade. The drywell is positioned a minimum of eight feet away from the building footing. A one-and-one-half-inch minimum approved drainage pipe connects the building drinking fountain to the drywell. The bottom of the drywell is filled with one-inch minimum gravel rock.

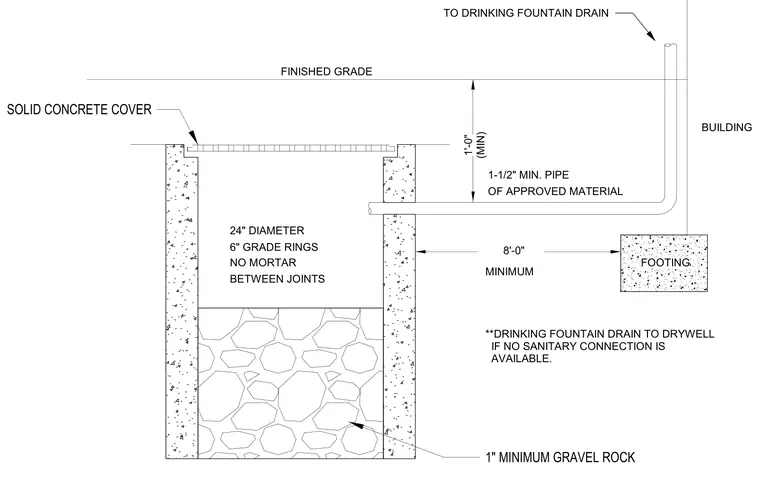

1'-0" (MIN) FINISHED GRADE 8'-0" MINIMUM FOOTING 6" GRADE RINGS 24" DIAMETER NO MORTAR BETWEEN JOINTS OF APPROVED MATERIAL 1-1/2" MIN. PIPE BUILDING **DRINKING FOUNTAIN DRAIN TO DRYWELL IF NO SANITARY CONNECTION IS AVAILABLE. 1" MINIMUM GRAVEL ROCK SOLID CONCRETE COVER TO DRINKING FOUNTAIN DRAIN
