Gas piping runs to an appliance supplied by the equipment manufacturer through a pressure regulator and a dirt leg. A UL listed and FM approved direct-acting emergency gas shutoff valve is installed on the line alongside a wall-mount timer. Refer to floor plans for routing to the appliance.

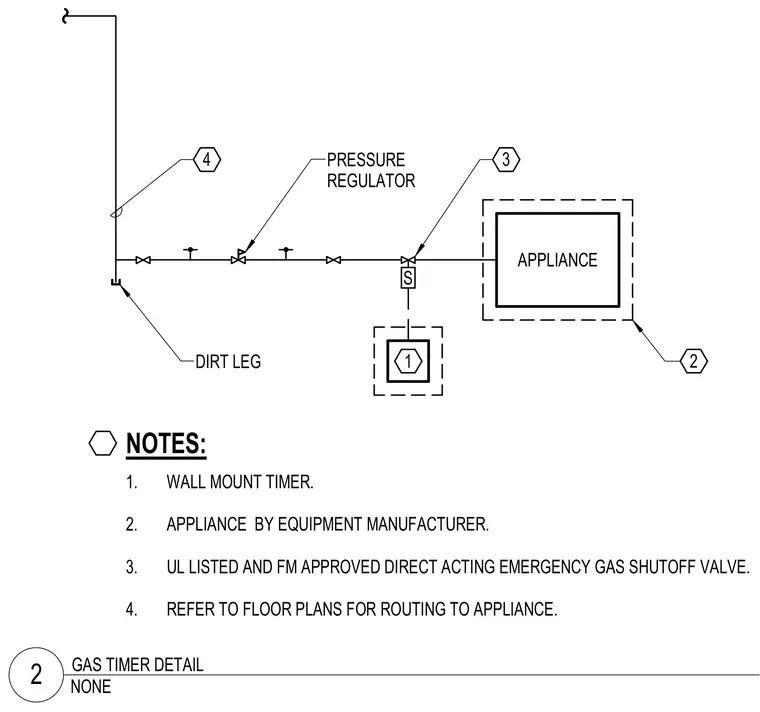

1. WALL MOUNT TIMER. 2. APPLIANCE BY EQUIPMENT MANUFACTURER. 3. UL LISTED AND FM APPROVED DIRECT ACTING EMERGENCY GAS SHUTOFF VALVE. 4. REFER TO FLOOR PLANS FOR ROUTING TO APPLIANCE. NOTES: PRESSURE REGULATOR DIRT LEG 4 APPLIANCE S 1 2 3 NONE 2 GAS TIMER DETAIL
