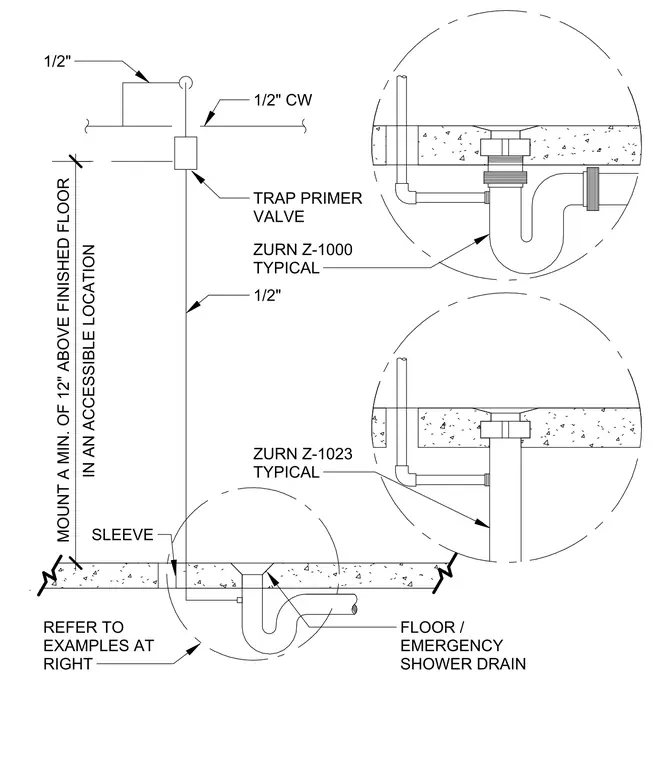

This assembly connects a one-half inch cold water supply line to a trap primer valve, which routes a one-half inch priming line through a floor sleeve to the trap. The trap primer valve must be mounted in an accessible location a minimum of twelve inches above the finished floor. Typical drain connections are shown with Zurn Z-1000 and Zurn Z-1023 floor and emergency shower drains. Pipe penetrations through the floor slab utilize a sleeve.
REFER TO EXAMPLES AT RIGHT SLEEVE FLOOR / EMERGENCY SHOWER DRAIN 1/2" TRAP PRIMER VALVE 1/2" CW ZURN Z-1000 TYPICAL ZURN Z-1023 TYPICAL 1/2" IN AN ACCESSIBLE LOCATION MOUNT A MIN. OF 12" ABOVE FINISHED FLOOR
