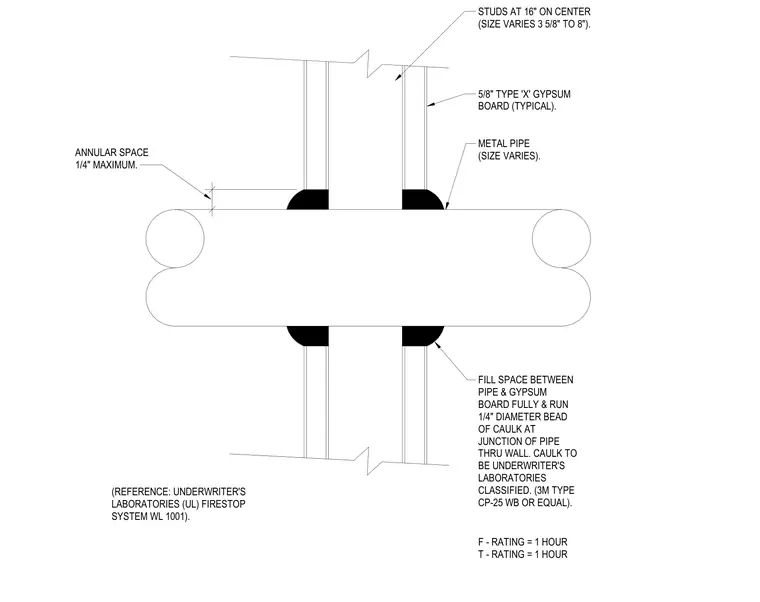

A metal pipe penetrates a gypsum board partition framed with studs spaced at sixteen inches on center, where stud sizes vary from three and five-eighths to eight inches. Layers of five-eighths inch Type X gypsum board face both sides of the wall. An annular space of one-quarter inch maximum surrounds the pipe within the opening. The space between the pipe and gypsum board is fully packed, and a one-quarter inch diameter bead of Underwriter's Laboratories classified firestop caulk, such as 3M Type CP-25 WB or equal, runs continuously at the junction of the pipe and the wall on both faces. This assembly conforms to Underwriter's Laboratories firestop system WL 1001, providing a one-hour F-rating and a one-hour T-rating.
(REFERENCE: UNDERWRITER'S LABORATORIES (UL) FIRESTOP SYSTEM WL 1001). F - RATING = 1 HOUR T - RATING = 1 HOUR ANNULAR SPACE 1/4" MAXIMUM. STUDS AT 16" ON CENTER (SIZE VARIES 3 5/8" TO 8"). 5/8" TYPE 'X' GYPSUM BOARD (TYPICAL). FILL SPACE BETWEEN PIPE & GYPSUM BOARD FULLY & RUN 1/4" DIAMETER BEAD OF CAULK AT JUNCTION OF PIPE THRU WALL. CAULK TO BE UNDERWRITER'S LABORATORIES CLASSIFIED. (3M TYPE CP-25 WB OR EQUAL). METAL PIPE (SIZE VARIES).
