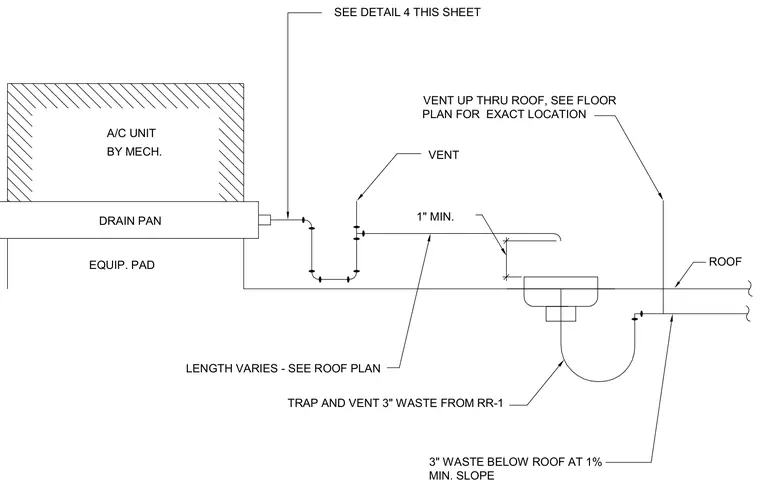

An air conditioning unit sits on an equipment pad with a drain pan discharging condensate through a trap and vent assembly. A three-inch waste line from restroom one with a trap and vent runs below the roof at a one percent minimum slope. A vent extends up through the roof, with its exact location coordinated per the floor plan. The condensate line discharges into a roof receptor with a minimum one-inch clearance.
TRAP AND VENT 3" WASTE FROM RR-1 LENGTH VARIES - SEE ROOF PLAN EQUIP. PAD A/C UNIT BY MECH. DRAIN PAN 1" MIN. VENT ROOF VENT UP THRU ROOF, SEE FLOOR PLAN FOR EXACT LOCATION 3" WASTE BELOW ROOF AT 1% MIN. SLOPE SEE DETAIL 4 THIS SHEET
