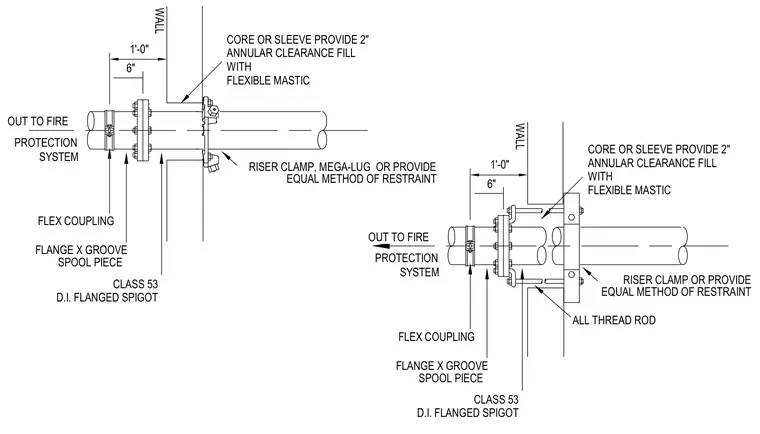

A Class 53 ductile iron pipe passes through a wall core or sleeve, providing a two-inch annular clearance filled with flexible mastic. The assembly connects to the fire protection system using a flange by groove spool piece secured with a flex coupling. Restraint is provided on one side by a riser clamp, Megalug, or equivalent method, and on the other by all-thread rods anchored through the wall.
1'-0" 6" WALL 6" 1'-0" WALL OUT TO FIRE RISER CLAMP, MEGA-LUG OR PROVIDE EQUAL METHOD OF RESTRAINT CLASS 53 D.I. FLANGED SPIGOT FLANGE X GROOVE SPOOL PIECE FLEX COUPLING SYSTEM PROTECTION CORE OR SLEEVE PROVIDE 2" ANNULAR CLEARANCE FILL WITH FLEXIBLE MASTIC D.I. FLANGED SPIGOT FLANGE X GROOVE SPOOL PIECE FLEX COUPLING EQUAL METHOD OF RESTRAINT RISER CLAMP OR PROVIDE ALL THREAD ROD CLASS 53 SYSTEM OUT TO FIRE PROTECTION CORE OR SLEEVE PROVIDE 2" ANNULAR CLEARANCE FILL WITH FLEXIBLE MASTIC
