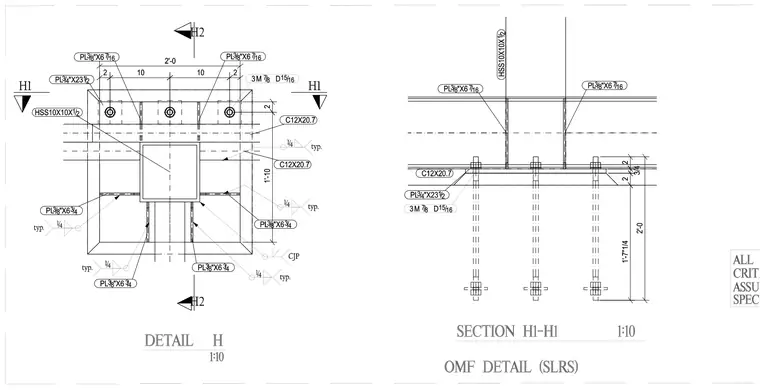

This structural steel detail shows a column connection incorporating an HSS 10x10x1/2 column supporting C12x20.7 channel members. Connection plates include PL 3/4"x23 1/2 and PL 3/8"x6 plates with various dimensions and typical 1/4" fillet welds. Fasteners include three 7/8" diameter bolts with 15/16" holes.
