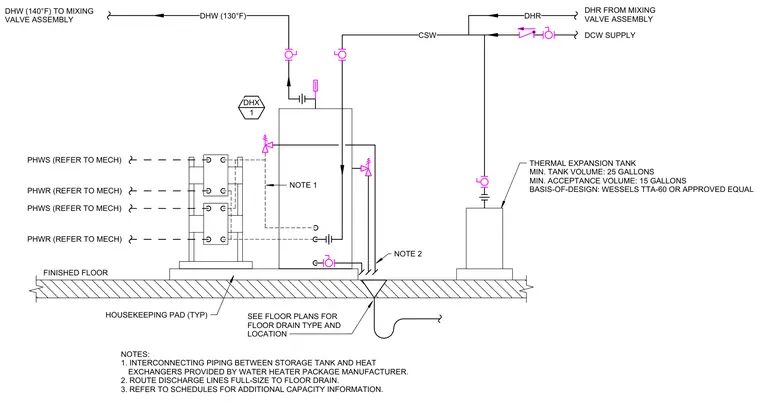

The semi-instantaneous domestic water heater assembly rests on a concrete housekeeping pad over the finished floor and connects to domestic cold water supply, domestic hot water at 130 degrees Fahrenheit, and domestic hot water return lines. Interconnecting piping between the storage tank and heat exchangers is provided by the water heater package manufacturer. A thermal expansion tank with a minimum tank volume of 25 gallons and minimum acceptance volume of 15 gallons ties into the system, based on a Wessels TTA-60 or approved equal. Discharge lines route full-size to a nearby floor drain, with floor drain type and location verified per floor plans.
FINISHED FLOOR CSW DHR DHW (130°F) DCW SUPPLY DHR FROM MIXING VALVE ASSEMBLY DHW (140°F) TO MIXING VALVE ASSEMBLY 1. 2. 3. NOTES: INTERCONNECTING PIPING BETWEEN STORAGE TANK AND HEAT EXCHANGERS PROVIDED BY WATER HEATER PACKAGE MANUFACTURER. ROUTE DISCHARGE LINES FULL-SIZE TO FLOOR DRAIN. REFER TO SCHEDULES FOR ADDITIONAL CAPACITY INFORMATION. DHX 1 NOTE 1 PHWS (REFER TO MECH) THERMAL EXPANSION TANK MIN. TANK VOLUME: 25 GALLONS MIN. ACCEPTANCE VOLUME: 15 GALLONS BASIS-OF-DESIGN: WESSELS TTA-60 OR APPROVED EQUAL PHWS (REFER TO MECH) PHWR (REFER TO MECH) PHWR (REFER TO MECH) HOUSEKEEPING PAD (TYP) NOTE 2 SEE FLOOR PLANS FOR FLOOR DRAIN TYPE AND LOCATION
