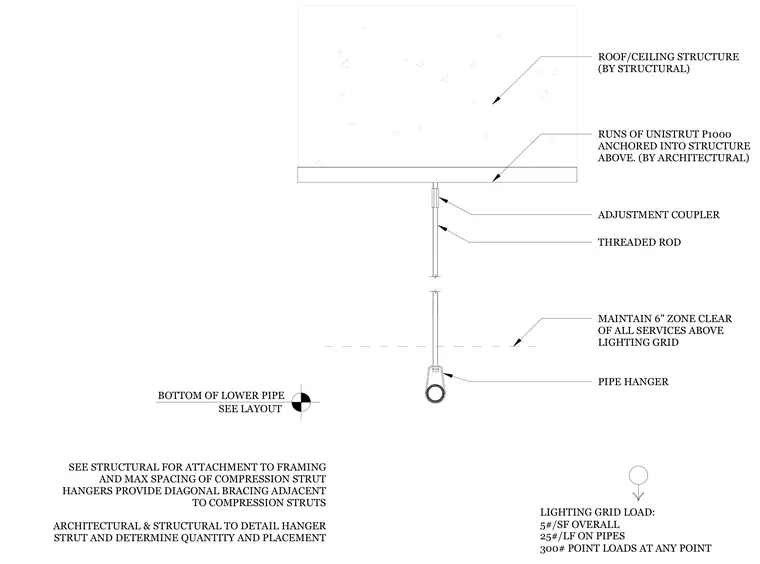

A threaded rod suspended from Unistrut P1000 channels anchored into the overhead roof or ceiling structure connects to a pipe hanger supporting the grid below. An adjustment coupler allows for height regulation along the threaded rod. A six-inch clearance zone must be maintained above the lighting grid free of all other services. Diagonal bracing and compression struts require coordination between architectural and structural trades.
LIGHTING GRID LOAD: 5#/SF OVERALL 25#/LF ON PIPES 300# POINT LOADS AT ANY POINT RUNS OF UNISTRUT P1000 ANCHORED INTO STRUCTURE ABOVE. (BY ARCHITECTURAL) ADJUSTMENT COUPLER THREADED ROD PIPE HANGER MAINTAIN 6" ZONE CLEAR OF ALL SERVICES ABOVE LIGHTING GRID SEE STRUCTURAL FOR ATTACHMENT TO FRAMING AND MAX SPACING OF COMPRESSION STRUT HANGERS PROVIDE DIAGONAL BRACING ADJACENT TO COMPRESSION STRUTS ARCHITECTURAL & STRUCTURAL TO DETAIL HANGER STRUT AND DETERMINE QUANTITY AND PLACEMENT BOTTOM OF LOWER PIPE SEE LAYOUT ROOF/CEILING STRUCTURE (BY STRUCTURAL)
