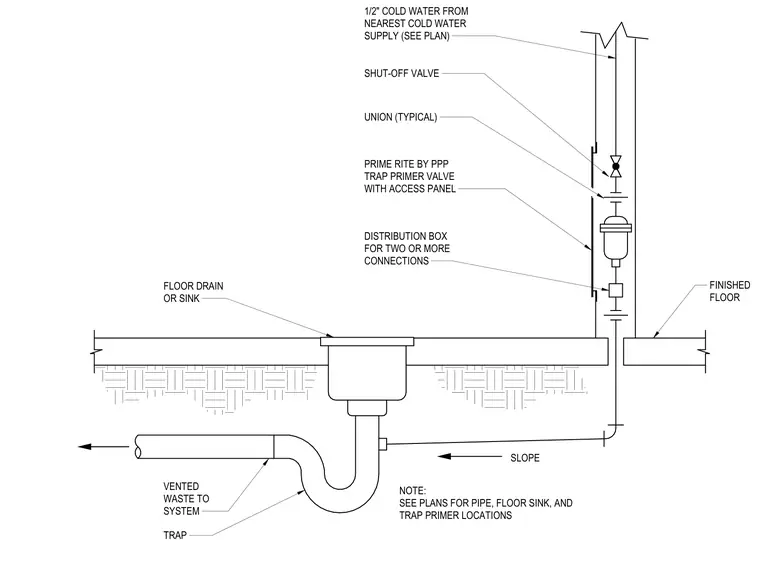

A half-inch cold water supply line feeds down through a wall, equipped with a shut-off valve and typical union fittings. The line connects to a Prime Rite trap primer valve housed in an access panel, which feeds into a distribution box for multiple connections. A supply line extends down through the finished floor to prime the floor drain or sink trap below. The drainage system features a vented waste line connected to the trap with a sloped run.
1/2" COLD WATER FROM NEAREST COLD WATER SUPPLY (SEE PLAN) SHUT-OFF VALVE UNION (TYPICAL) PRIME RITE BY PPP TRAP PRIMER VALVE WITH ACCESS PANEL DISTRIBUTION BOX FOR TWO OR MORE CONNECTIONS FINISHED FLOOR SLOPE TRAP VENTED WASTE TO SYSTEM FLOOR DRAIN OR SINK NOTE: SEE PLANS FOR PIPE, FLOOR SINK, AND TRAP PRIMER LOCATIONS
