A plumbing cleanout assembly connects to a building drain or sewer line of specified material and size. A cast iron long sweep, quarter bend, or combined wye and eighth bend transitions the vertical line to the horizontal run, incorporating a maximum 4-inch cleanout or blind plug at the end of the line. Reducing types are used where required. The assembly terminates at grade with a brass cleanout and grade cover.

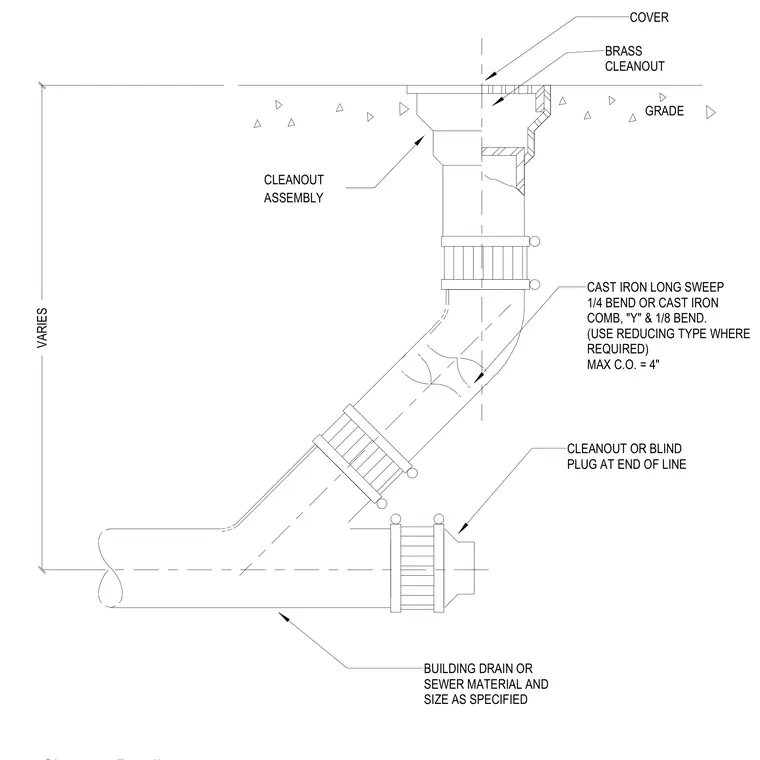

COVER GRADE BRASS CLEANOUT CAST IRON LONG SWEEP 1/4 BEND OR CAST IRON COMB, "Y" & 1/8 BEND. (USE REDUCING TYPE WHERE REQUIRED) MAX C.O. = 4" CLEANOUT OR BLIND PLUG AT END OF LINE CLEANOUT ASSEMBLY BUILDING DRAIN OR SEWER MATERIAL AND SIZE AS SPECIFIED VARIES
