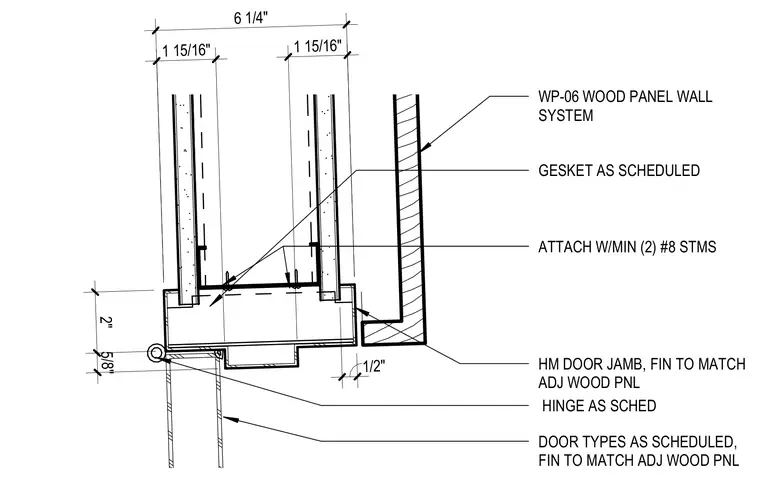

A hollow metal door frame connects to a wood panel wall system finished to match adjacent wood panels. A scheduled gasket seals the frame joint. The door connects to the jamb using scheduled hinges. Attachment uses a minimum of two number 8 sheet metal screws.
1/2" 2" 5/8" 1 15/16" HINGE AS SCHED WP-06 WOOD PANEL WALL SYSTEM DOOR TYPES AS SCHEDULED, FIN TO MATCH ADJ WOOD PNL HM DOOR JAMB, FIN TO MATCH ADJ WOOD PNL GESKET AS SCHEDULED ATTACH W/MIN (2) #8 STMS 1 15/16" 6 1/4"
