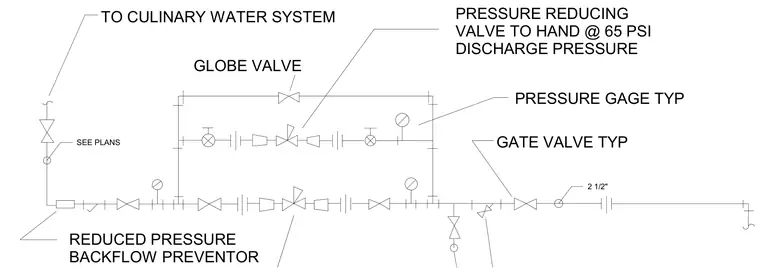

The 2-1/2-inch culinary water supply line incorporates a reduced pressure backflow preventer assembly, gate valves, and pressure gauges typical of mainline service entry. A pressure reducing valve is configured to deliver a discharge pressure of 65 pounds per square inch, flanked by isolation valves and unions. A bypass line equipped with a globe valve allows for maintenance and flow continuity without interrupting service. All valves and gauges are sized and installed per the architectural and plumbing plans.
TO CULINARY WATER SYSTEM GLOBE VALVE REDUCED PRESSURE BACKFLOW PREVENTOR PRESSURE REDUCING VALVE TO HAND @ 65 PSI DISCHARGE PRESSURE PRESSURE GAGE TYP GATE VALVE TYP SEE PLANS 2 1/2"
