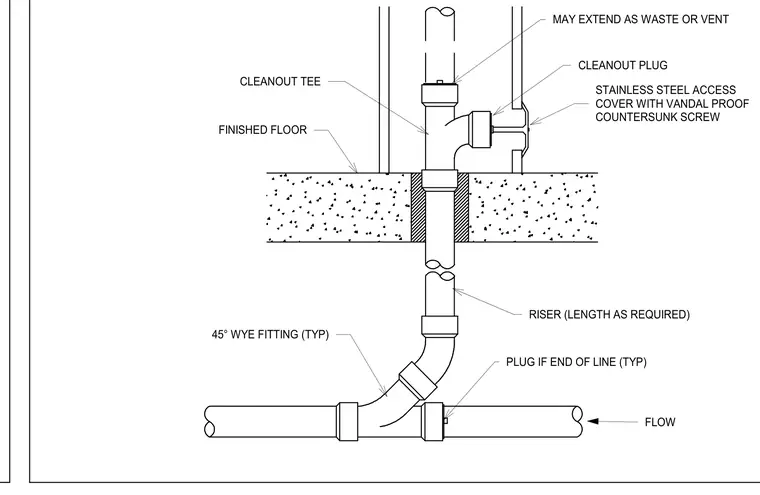

A finished floor cleanout tee connects to a vertical riser pipe that may extend as a waste or vent line. A cleanout plug seals the access port, which is concealed behind a stainless steel access cover secured with vandal-proof countersunk screws. The riser extends down through the floor slab and connects to horizontal piping via a forty-five-degree wye fitting with a plug at the end of the line.
FINISHED FLOOR CLEANOUT TEE MAY EXTEND AS WASTE OR VENT CLEANOUT PLUG STAINLESS STEEL ACCESS COVER WITH VANDAL PROOF COUNTERSUNK SCREW RISER (LENGTH AS REQUIRED) PLUG IF END OF LINE (TYP) 45° WYE FITTING (TYP) FLOW
