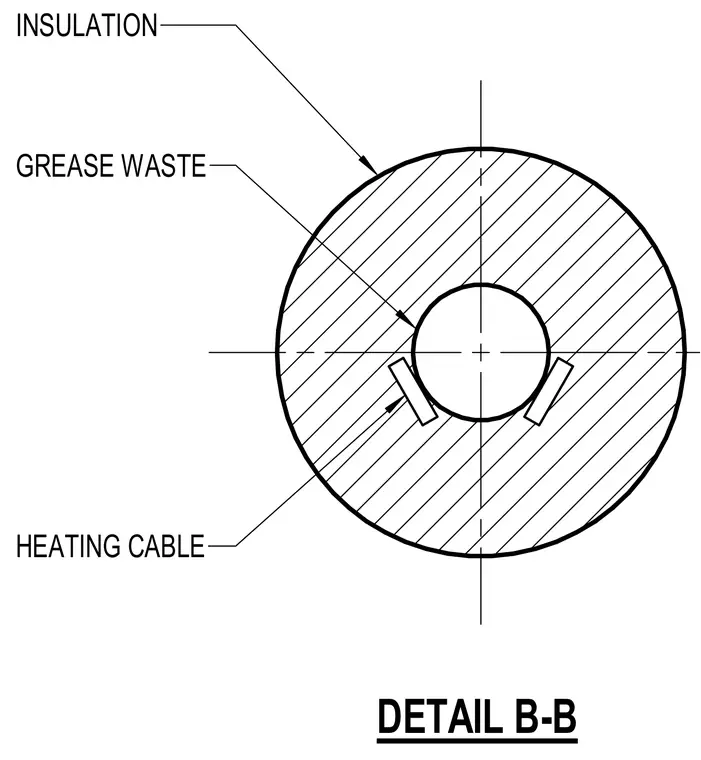

A grease waste pipe is wrapped with heating cables along its lower quadrants, surrounded by an outer layer of thermal insulation. The configuration prevents grease solidification within the plumbing line by maintaining elevated temperatures along the pipe wall.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
