Plumbing · P-5TWJV

Floor Sink Drainage Assembly Detail

Materials

Elements

Facades / Cladding Floors / Slabs Vaults / Domes Drainage Connections / Plates Roof / Floor Openings

About this detail

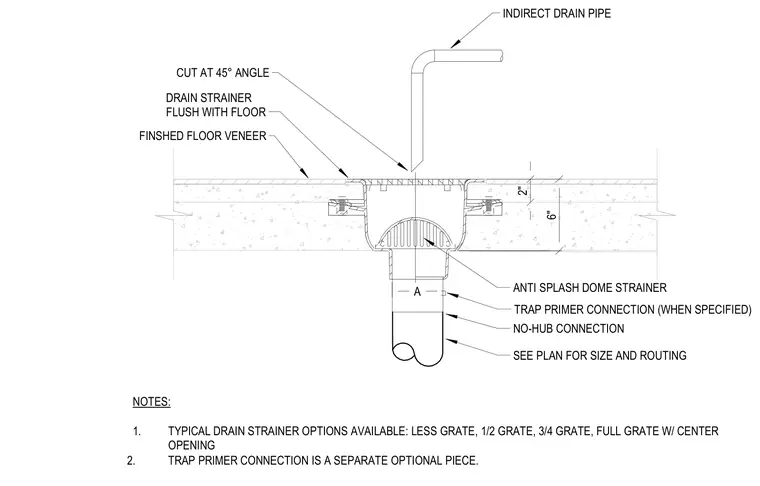

A floor sink installation is set flush with the finished floor veneer and supported by a structural floor slab. An indirect drain pipe cuts at a 45-degree angle above the drain strainer to discharge waste. The assembly includes an anti-splash dome strainer, a trap primer connection when specified, and a no-hub connection to the waste piping below sized per plan. Drain strainer options include less grate, half grate, three-quarter grate, and full grate with a center opening.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
