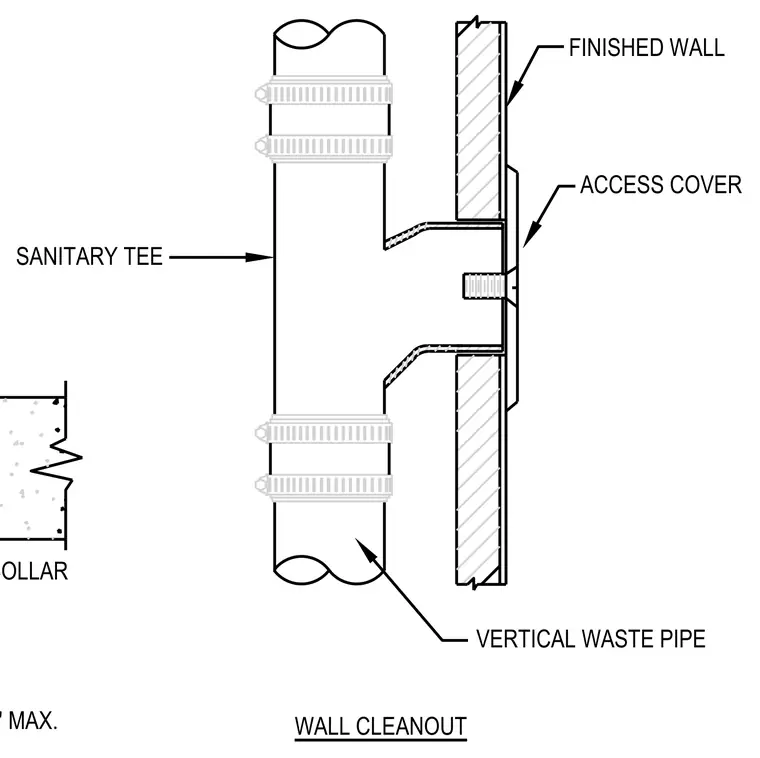

A vertical waste pipe features a sanitary tee fitting that connects to a branch extending through the wall assembly to terminate at a cleanout. The branch is capped with an access cover set flush against the finished wall surface. Clamping bands secure the sanitary tee to the vertical pipe segments above and below the fitting. An adjusting collar bend is indicated nearby for sizing adjustments.
ADJUSTING COLLAR BEND FULL SIZE, 4'' MAX. VERTICAL WASTE PIPE SANITARY TEE ACCESS COVER FINISHED WALL WALL CLEANOUT
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
