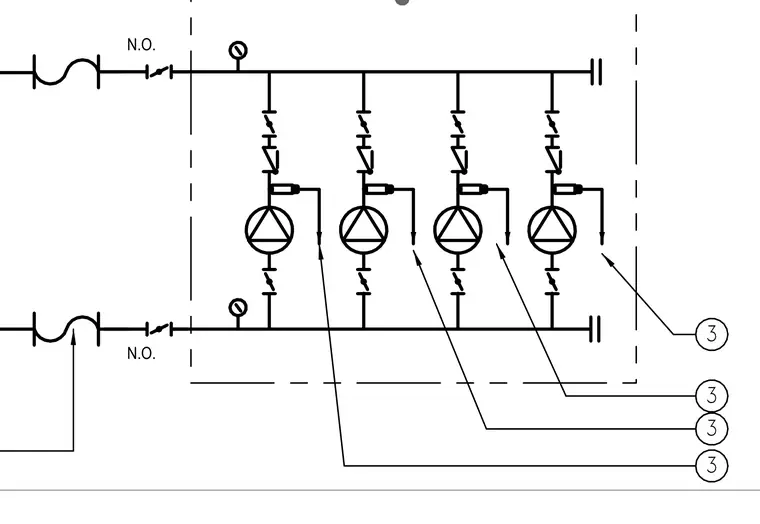

A parallel multi-pump assembly connects supply and return piping headers through inline isolation and check valves. Four individual pumps tie into the main header loop, each equipped with dedicated valving and pressure monitoring instruments. Normally open valves are positioned along the primary piping runs to manage flow distribution. Labeled connection points indicate tie-ins to the broader plumbing or mechanical system.
3 3 3 3 N.O. N.O.
