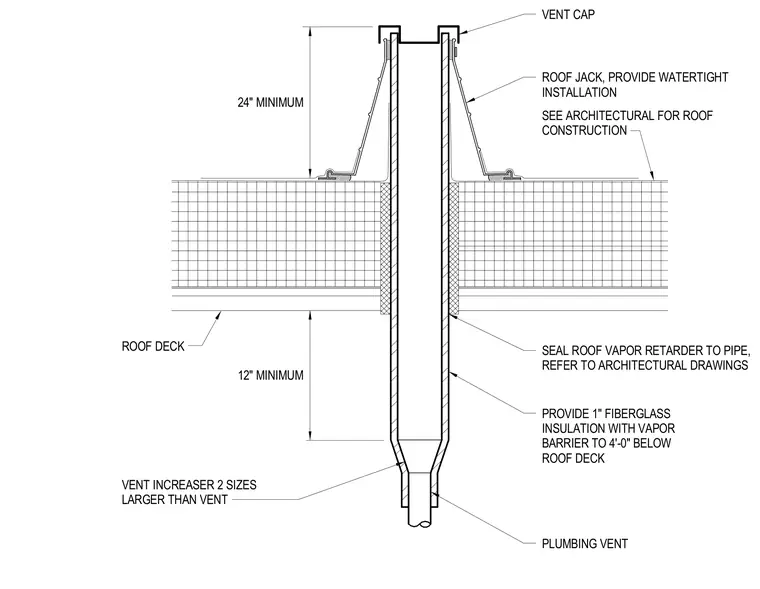

A plumbing vent penetrates the roof deck with a watertight roof jack and a vent cap extending twenty-four inches minimum above the roof surface. A vent increaser sized two sizes larger than the vent connects below the deck. One-inch fiberglass insulation with a vapor barrier extends four feet below the roof deck along the pipe, and the roof vapor retarder is sealed to the pipe.
SEAL ROOF VAPOR RETARDER TO PIPE, REFER TO ARCHITECTURAL DRAWINGS VENT INCREASER 2 SIZES LARGER THAN VENT ROOF DECK 24" MINIMUM PLUMBING VENT PROVIDE 1" FIBERGLASS INSULATION WITH VAPOR BARRIER TO 4'-0" BELOW ROOF DECK ROOF JACK, PROVIDE WATERTIGHT INSTALLATION VENT CAP SEE ARCHITECTURAL FOR ROOF CONSTRUCTION 12" MINIMUM
