Electrical Equipment Overhead Drip Pan Detail

Materials

Elements

Floors / Slabs Waterproofing / Flashing Drainage

About this detail

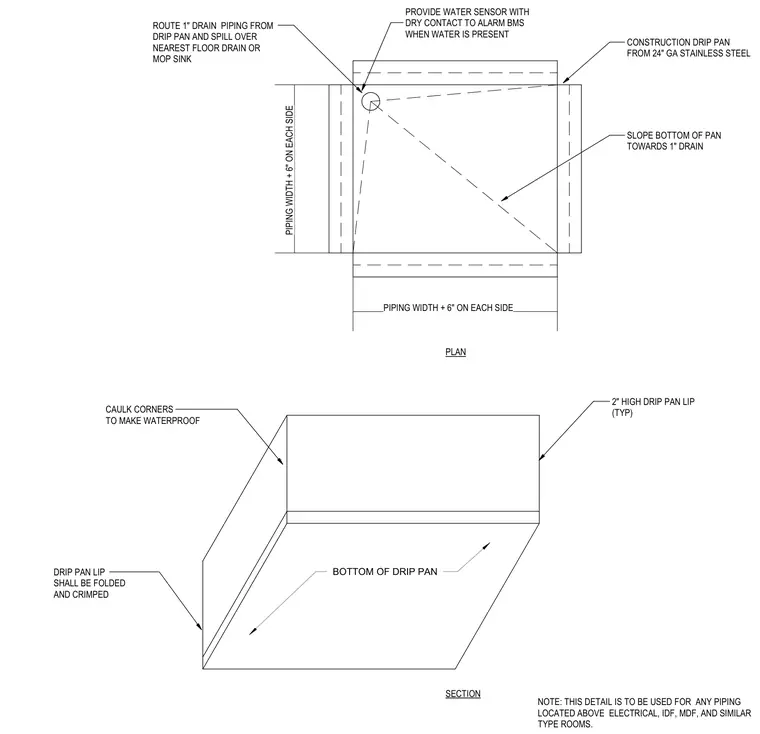

An overhead drip pan is constructed from twenty-four gauge stainless steel with folded and crimped lips and caulked corners to ensure a waterproof assembly. The pan features a two-inch high typical lip and a bottom sloped towards a one-inch drain. The pan dimensions extend six inches beyond the piping width on each side. A one-inch drain piping routes from the drip pan to spill over the nearest floor drain or mop sink. A water sensor with dry contact is provided to alarm the building management system when water is present. This detail is required for piping located above electrical, IDF, MDF, and similar type rooms.
