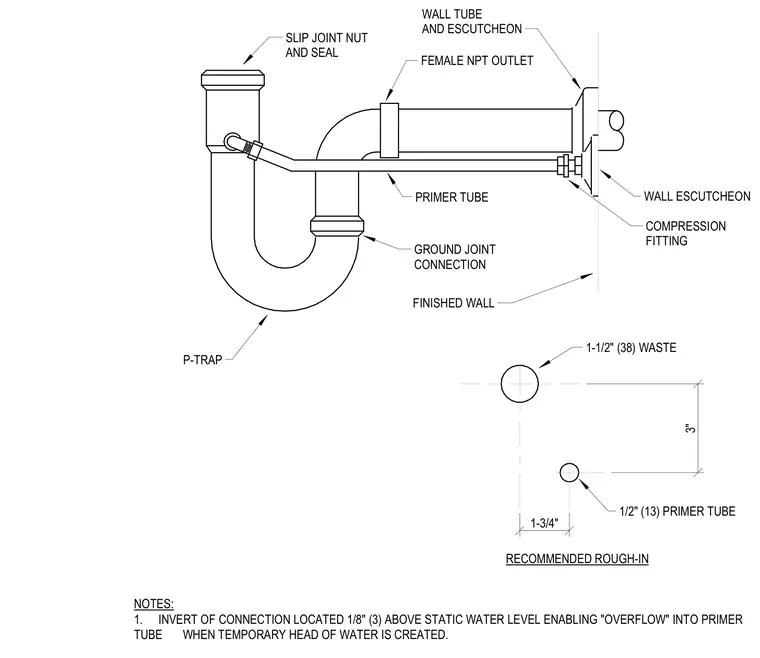

A 1/2-inch primer tube connects to a P-trap assembly via a slip joint nut and seal, with its invert located 1/8 inch above the static water level to enable overflow into the primer tube when a temporary head of water is created. The assembly includes a ground joint connection, a wall tube and escutcheon, and a female National Pipe Thread outlet. The waste line is 1-1/2 inches, and the recommended rough-in spaces the waste and primer tube with specific vertical and horizontal dimensions relative to the finished wall.
RECOMMENDED ROUGH-IN NOTES: 1. INVERT OF CONNECTION LOCATED 1/8" (3) ABOVE STATIC WATER LEVEL ENABLING "OVERFLOW" INTO PRIMER TUBE WHEN TEMPORARY HEAD OF WATER IS CREATED. SLIP JOINT NUT AND SEAL WALL TUBE AND ESCUTCHEON FEMALE NPT OUTLET WALL ESCUTCHEON COMPRESSION FITTING PRIMER TUBE GROUND JOINT CONNECTION FINISHED WALL P-TRAP 1-1/2" (38) WASTE 1/2" (13) PRIMER TUBE 3" 1-3/4"
