Plumbing · P-5BFFB

Sewer and Vent Isometric Plan

Materials

Elements

About this detail

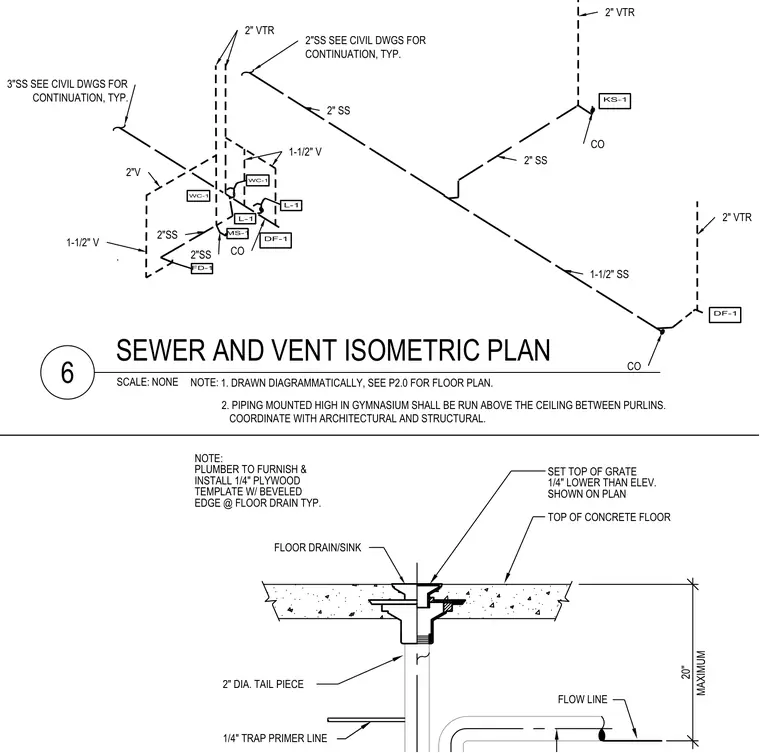

Diagrammatic isometric plumbing plan of sanitary sewer and vent lines with fixture connections including water closets, lavatories, sinks, floor drains, and mop sinks. Corresponding detail of floor drain or sink installed within a concrete floor slab, complete with a two-inch diameter tailpiece, a one-quarter-inch trap primer line, and a floor drain set one-quarter-inch lower than the surrounding concrete finish elevation. A quarter-inch plywood template with a beveled edge is specified for installation at the floor drain. Piping installed high in the gymnasium is coordinated to run above the ceiling between purlins.
