An instant water heater supplies hot and cold water to a sink through a double angle stop valve. The cold water line requires rigid supply tubing only, with no flexible connections permitted.

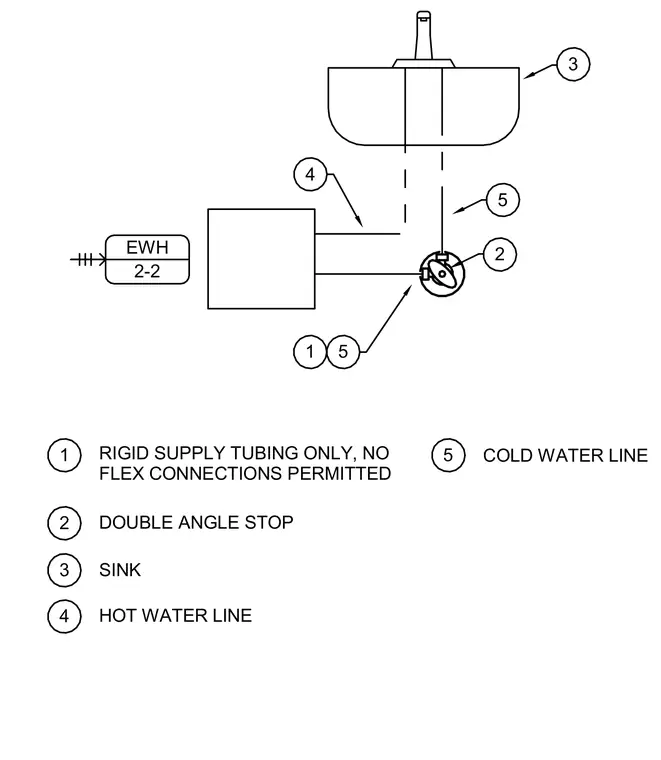

COLD WATER LINE RIGID SUPPLY TUBING ONLY, NO FLEX CONNECTIONS PERMITTED DOUBLE ANGLE STOP SINK HOT WATER LINE 1 2 3 4 5 EWH 2-2 3 4 5 5 1 2
