Plumbing · P-5A63H

Electric Water Heater Piping with Recirculation Detail

Elements

About this detail

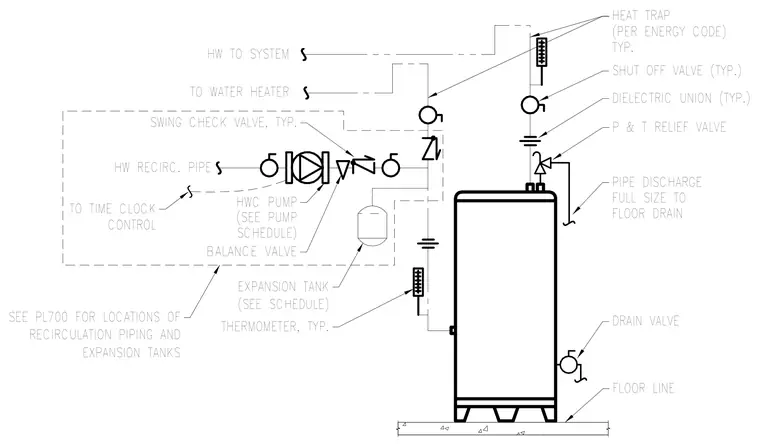

An electric water heater is connected to the domestic hot water system with a hot water recirculation loop, expansion tank, and associated valving. The hot water supply line rises from the heater through a heat trap per energy code, a typical shut-off valve, and a dielectric union, with a pressure and temperature relief valve discharging through a full-size pipe to a floor line drain. The recirculation return line includes a time-clock-controlled hot water circulation pump, swing check valve, balance valve, and an expansion tank. Thermometers are installed on both the supply and return lines, and a drain valve is positioned near the base of the heater above the floor line.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
