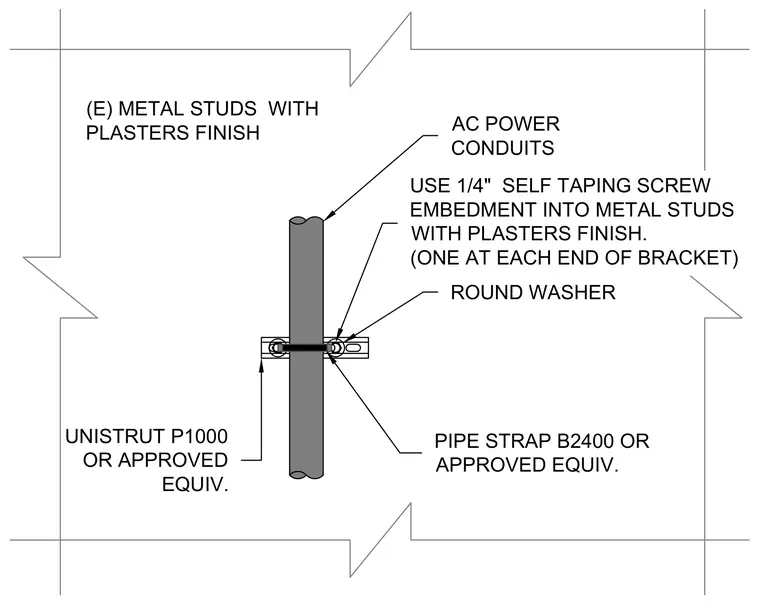

An alternating current power conduit is surface-mounted against an existing metal stud wall with plaster finish. A Unistrut P1000 channel or approved equivalent acts as the support backing, secured with one quarter-inch self-taping screw embedded into the metal studs at each end of the bracket. A round washer and a B2400 pipe strap or approved equivalent clamp the conduit securely inside the Unistrut channel.
PIPE STRAP B2400 OR APPROVED EQUIV. ROUND WASHER UNISTRUT P1000 OR APPROVED EQUIV. AC POWER CONDUITS (E) METAL STUDS WITH PLASTERS FINISH USE 1/4" SELF TAPING SCREW EMBEDMENT INTO METAL STUDS WITH PLASTERS FINISH. (ONE AT EACH END OF BRACKET) io
