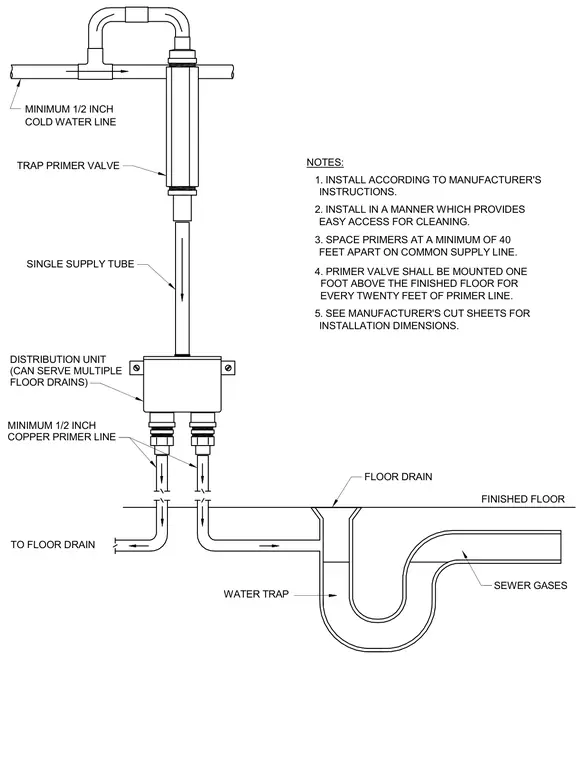

A minimum one-half-inch cold water supply line feeds a trap primer valve, which drops down through a single supply tube into a distribution unit capable of serving multiple floor drains. From the distribution unit, a minimum one-half-inch copper primer line extends to maintain the water seal in the floor drain trap and prevent the escape of sewer gases. The installation requires primers to be spaced at a minimum of forty feet apart on a common supply line, with the valve mounted one foot above the finished floor for every twenty feet of primer line.
FINISHED FLOOR 1. INSTALL ACCORDING TO MANUFACTURER'S 2. INSTALL IN A MANNER WHICH PROVIDES 3. SPACE PRIMERS AT A MINIMUM OF 40 FEET APART ON COMMON SUPPLY LINE. EASY ACCESS FOR CLEANING. 4. PRIMER VALVE SHALL BE MOUNTED ONE FOOT ABOVE THE FINISHED FLOOR FOR EVERY TWENTY FEET OF PRIMER LINE. 5. SEE MANUFACTURER'S CUT SHEETS FOR INSTALLATION DIMENSIONS. NOTES: INSTRUCTIONS. TO FLOOR DRAIN WATER TRAP DISTRIBUTION UNIT COPPER PRIMER LINE MINIMUM 1/2 INCH (CAN SERVE MULTIPLE FLOOR DRAINS) SINGLE SUPPLY TUBE FLOOR DRAIN MINIMUM 1/2 INCH COLD WATER LINE TRAP PRIMER VALVE SEWER GASES
