Plumbing · P-58GB3

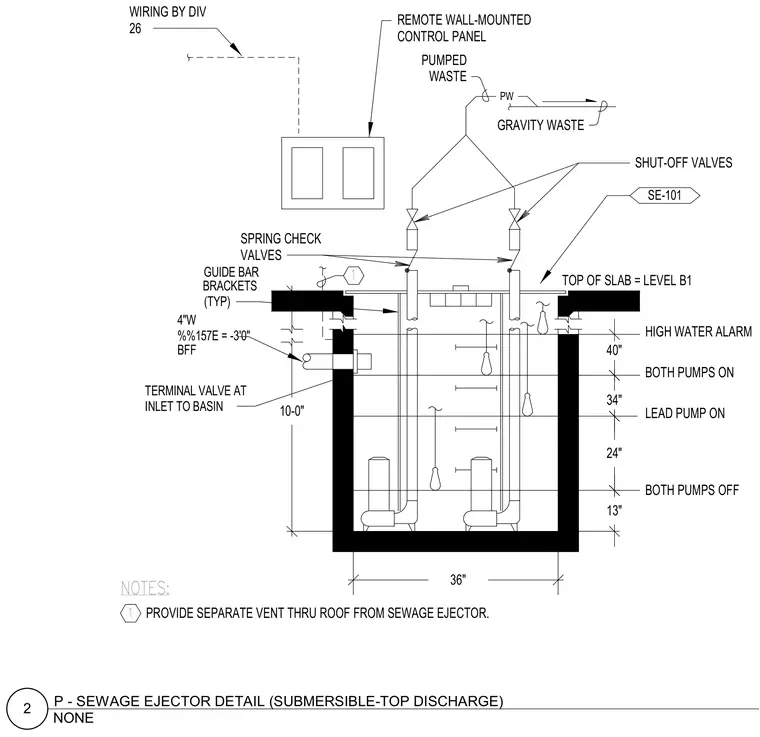

Sewage Ejector Detail Submersible Top Discharge

Elements

About this detail

A subterranean sewage ejector basin features dual submersible pumps, guide bar brackets, and a terminal valve at the inlet. Discharge piping connects to spring check valves and shut-off valves, routed upward to pumped waste lines. A remote wall-mounted control panel manages system operation, with wiring provided by Division 26. Float switches regulate high water alarm, lead pump activation, and pump shut-off levels within the basin.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
