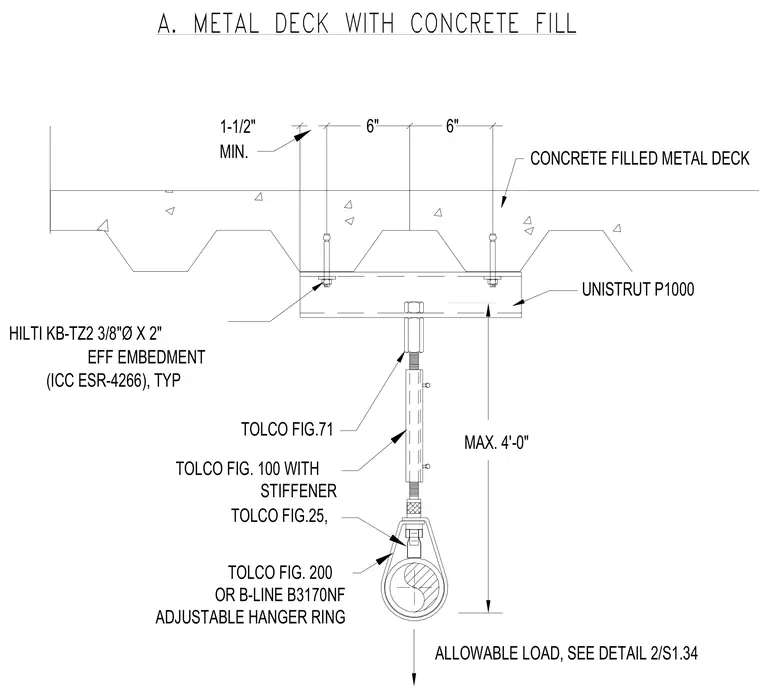

A Unistrut P1000 channel is anchored to the underside of a concrete-filled metal deck using typical 3/8-inch diameter by 2-inch effective embedment Hilti KB-TZ2 wedge anchors. A threaded rod with a Tolco Fig. 71 rod coupling and a Tolco Fig. 100 hanger with stiffener suspends a Tolco Fig. 200 or B-Line B3170NF adjustable hanger ring. The maximum hanger spacing is 4 feet on center, and the allowable load is referenced to detail 2/S1.34.
A. METAL DECK WITH CONCRETE FILL CONCRETE FILLED METAL DECK UNISTRUT P1000 HILTI KB-TZ2 3/8"Ø X 2" EFF EMBEDMENT (ICC ESR-4266), TYP TOLCO FIG.71 TOLCO FIG. 200 OR B-LINE B3170NF ADJUSTABLE HANGER RING MAX. 4'-0" TOLCO FIG. 100 WITH STIFFENER TOLCO FIG.25, 6" 6" 1-1/2" MIN. ALLOWABLE LOAD, SEE DETAIL 2/S1.34
