The pool deck drain assembly features a PD-1 drain connected to a three-inch diameter storm drain line routing through the pool deck structure and a pool or foam-filled area. The pipe passes through a six-inch diameter pipe sleeve in the structural slab above the parking garage. An air gap complying with ASME A112.1.2 is provided, sized to two times the pipe diameter. A six-inch to three-inch pipe reducer transitions the line down to a three-inch diameter fourteen mesh wye strainer located in the parking garage area.

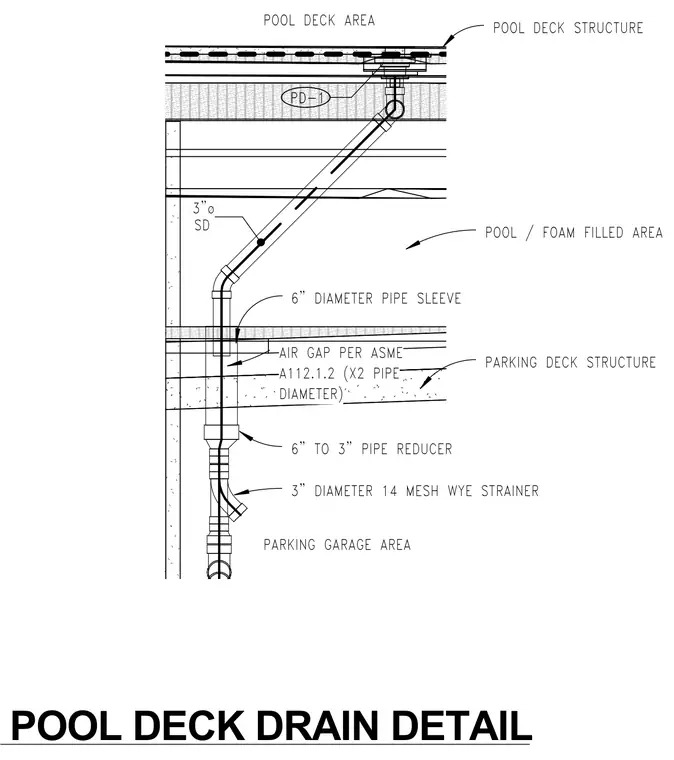

SD 3"ø AIR GAP PER ASME A112.1.2 (X2 PIPE DIAMETER) 3" DIAMETER 14 MESH WYE STRAINER PD-1 6" TO 3" PIPE REDUCER POOL / FOAM FILLED AREA POOL DECK STRUCTURE PARKING GARAGE AREA POOL DECK AREA PARKING DECK STRUCTURE 6" DIAMETER PIPE SLEEVE POOL DECK DRAIN DETAIL
