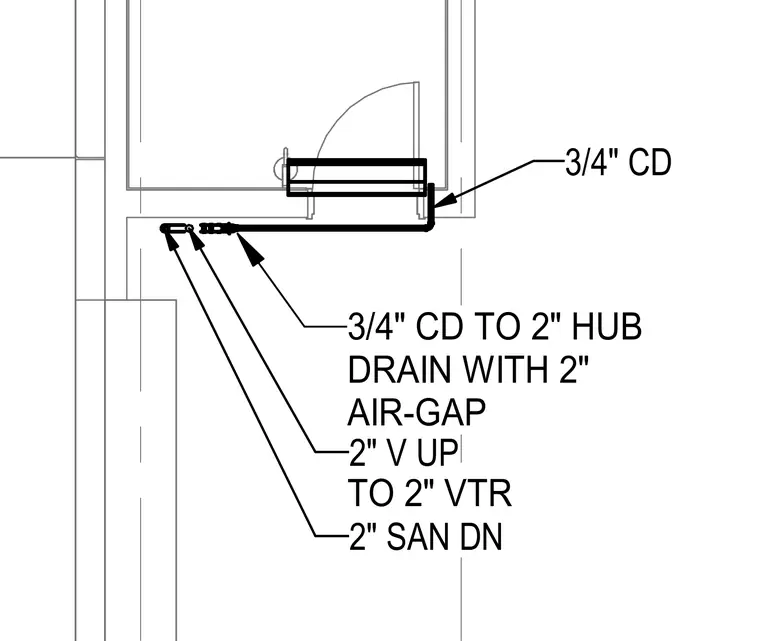

A three-quarter-inch condensate drain line connects to a two-inch hub drain maintaining a two-inch air gap. The waste line routes upward as a two-inch vent to a vent through roof connection, while tying into a two-inch sanitary drain.
