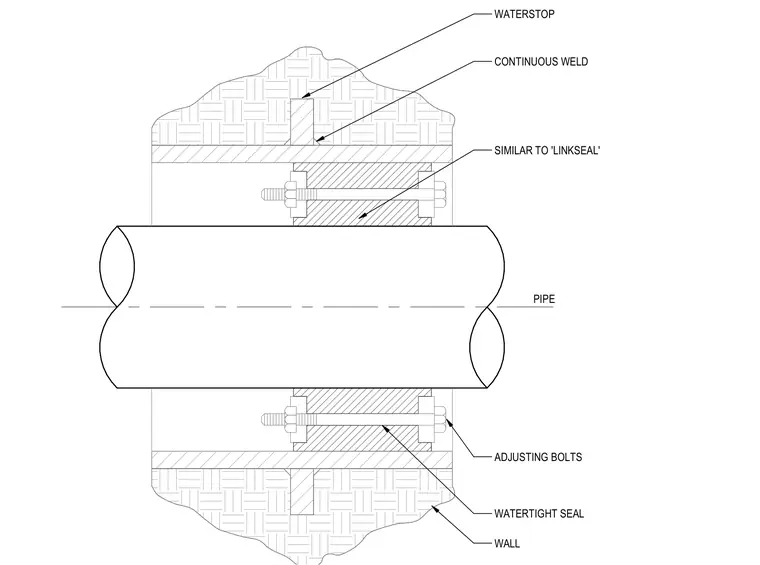

A pipe penetrates through a concrete wall with a watertight mechanical seal similar to Link-Seal secured by adjusting bolts. A waterstop is anchored into the surrounding wall with a continuous weld.
SIMILAR TO 'LINKSEAL' WALL WATERTIGHT SEAL ADJUSTING BOLTS PIPE CONTINUOUS WELD WATERSTOP
