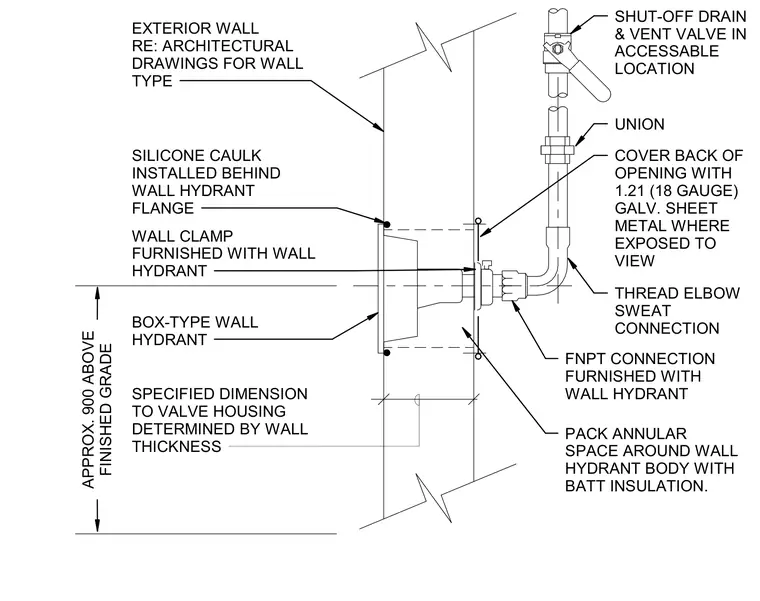

A box-type wall hydrant is mounted through an exterior wall with the valve housing dimension determined by the wall thickness. Silicone caulk is installed behind the wall hydrant flange, and a wall clamp is provided with the assembly. The annular space around the hydrant body is packed with batt insulation. The interior connection uses a threaded elbow sweat connection, a female National Pipe Thread union, and a shut-off drain and vent valve located in an accessible location. The back of the opening is covered with 18-gauge galvanized sheet metal where exposed to view.
THREAD ELBOW SWEAT CONNECTION EXTERIOR WALL RE: ARCHITECTURAL DRAWINGS FOR WALL TYPE BOX-TYPE WALL HYDRANT SPECIFIED DIMENSION TO VALVE HOUSING DETERMINED BY WALL THICKNESS SILICONE CAULK INSTALLED BEHIND WALL HYDRANT FLANGE WALL CLAMP FURNISHED WITH WALL HYDRANT COVER BACK OF OPENING WITH 1.21 (18 GAUGE) GALV. SHEET METAL WHERE EXPOSED TO VIEW SHUT-OFF DRAIN & VENT VALVE IN ACCESSABLE LOCATION UNION FNPT CONNECTION FURNISHED WITH WALL HYDRANT PACK ANNULAR SPACE AROUND WALL HYDRANT BODY WITH BATT INSULATION. APPROX. 900 ABOVE FINISHED GRADE
