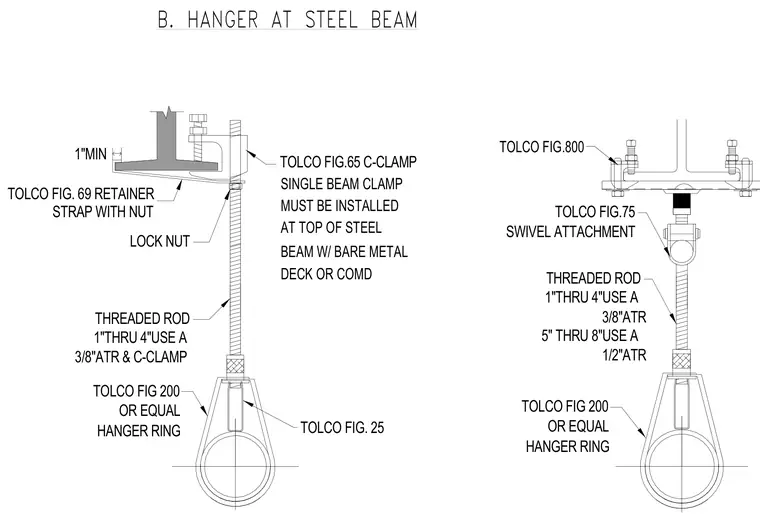

A single beam clamp must be installed at the top of the steel beam with bare metal deck or composite metal deck. The assembly utilizes a Tolco Fig. 65 C-clamp secured with a Tolco Fig. 69 retainer strap with nut maintaining a one-inch minimum clearance. A threaded rod ranging from three-eighths to one-half inch depending on pipe size connects to a Tolco Fig. 200 or equal hanger ring with a lock nut. Alternatively, a top-mounted beam clamp assembly uses a swivel attachment and hanger ring for pipe suspension.
SINGLE BEAM CLAMP MUST BE INSTALLED AT TOP OF STEEL BEAM W/ BARE METAL DECK OR COMD T O LC O B. HANGER AT STEEL BEAM THREADED ROD 1"THRU 4"USE A 3/8"ATR 5" THRU 8"USE A 1/2"ATR TOLCO FIG 200 OR EQUAL HANGER RING TOLCO FIG.800 TOLCO FIG.75 SWIVEL ATTACHMENT TOLCO FIG.65 C-CLAMP THREADED ROD 1"THRU 4"USE A 3/8"ATR & C-CLAMP TOLCO FIG 200 OR EQUAL HANGER RING TOLCO FIG. 25 1"MIN LOCK NUT TOLCO FIG. 69 RETAINER STRAP WITH NUT
