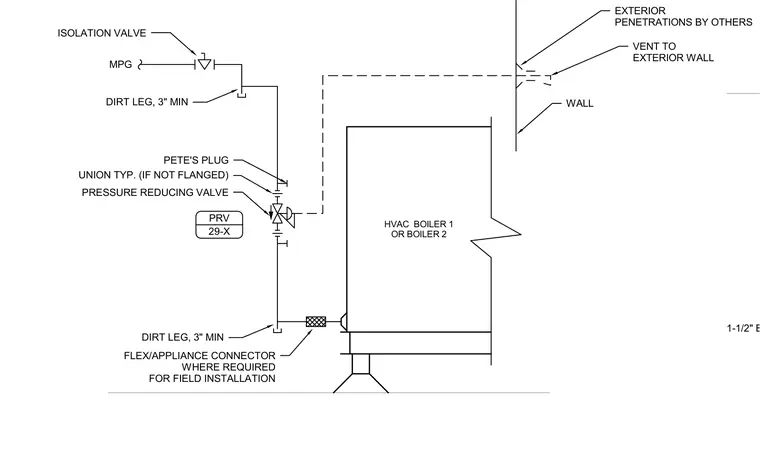

The medium pressure gas line enters through an isolation valve followed by a three-inch minimum dirt leg. A pressure reducing valve is installed with a Pete's plug and typical unions where un-flanged. A flexible appliance connector ties the vertical drop into the HVAC boiler inlet. Exterior penetrations and wall vents to the exterior wall are provided by others.
1-1/2" BRANCHED TAILPIECE PETE'S PLUG FLEX/APPLIANCE CONNECTOR WHERE REQUIRED FOR FIELD INSTALLATION DIRT LEG, 3" MIN UNION TYP. (IF NOT FLANGED) ISOLATION VALVE PRESSURE REDUCING VALVE WALL VENT TO EXTERIOR WALL EXTERIOR PENETRATIONS BY OTHERS DIRT LEG, 3" MIN HVAC BOILER 1 OR BOILER 2 PRV 29-X MPG
