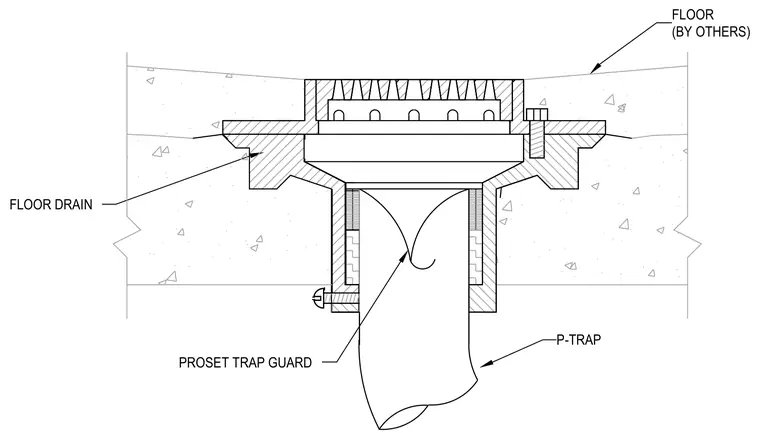

A floor drain assembly is installed within a concrete floor constructed by others, comprising a floor drain body flush with the finished floor surface, a connecting P-trap, and a Proset trap guard inserted into the drainage pipe. The surrounding floor slopes toward the drain for positive water runoff.
