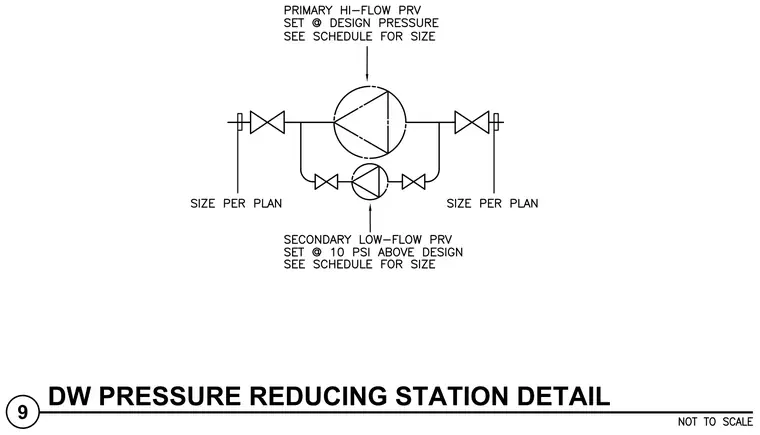

This domestic water pressure reducing station features a primary high-flow pressure reducing valve set at design pressure with sizing per schedule, flanked by upstream and downstream isolation valves sized per plan. A parallel bypass line incorporates a secondary low-flow pressure reducing valve set at ten pounds per square inch above design pressure with its own isolation valves on either side.
