The floor drain is cast in place within a concrete slab and aligned flush with the finish floor provided by others. The drain body connects to a deep seal P-trap installed per Utah code amendments.

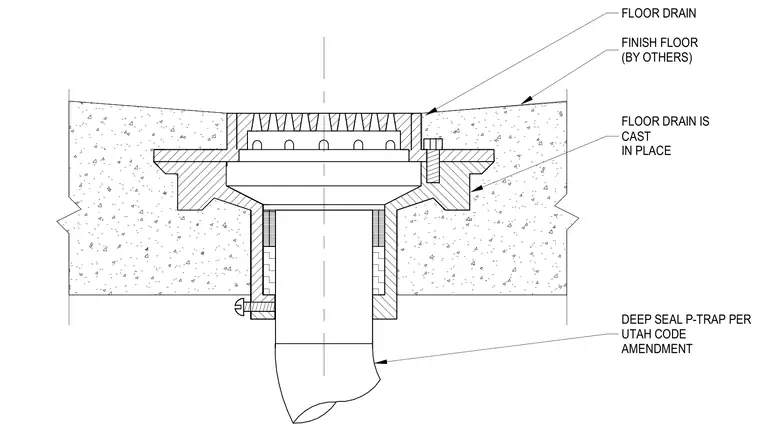

FINISH FLOOR (BY OTHERS) FLOOR DRAIN FLOOR DRAIN IS CAST IN PLACE DEEP SEAL P-TRAP PER UTAH CODE AMENDMENT
