A one-half inch domestic cold water supply line feeds a precision plumbing product trap primer or equal, which includes an access door in concealed locations. Downstream of the trap primer, a distribution box supplies up to four drain traps. One-half inch auxiliary inlets feed floor sinks and drains where required.

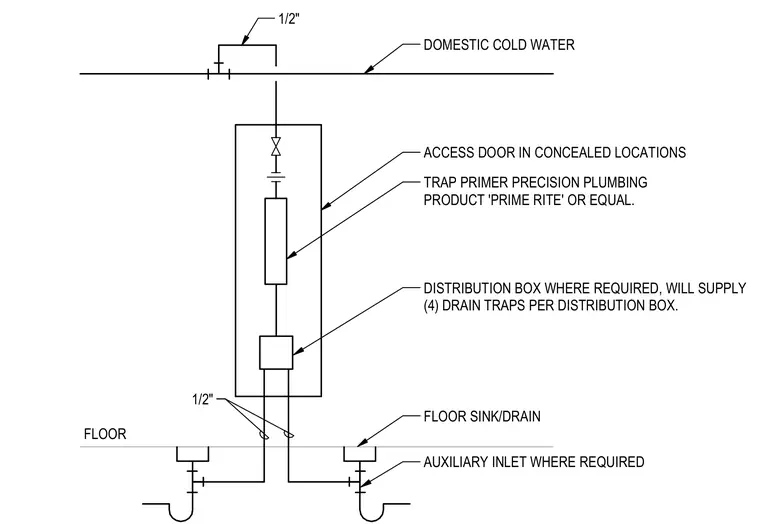

1/2" AUXILIARY INLET WHERE REQUIRED FLOOR FLOOR SINK/DRAIN TRAP PRIMER PRECISION PLUMBING PRODUCT 'PRIME RITE' OR EQUAL. 1/2" DOMESTIC COLD WATER ACCESS DOOR IN CONCEALED LOCATIONS DISTRIBUTION BOX WHERE REQUIRED, WILL SUPPLY (4) DRAIN TRAPS PER DISTRIBUTION BOX.
